BIM Coordination - Clash Detection
Project Overview
Federated BIM model coordination for an office building to identify spatial conflicts between building systems.
Role
Configured clash detection tests, reviewed coordination conflicts between disciplines, and documented issues for tracking and resolution.
Tools
Revit · Autodesk Construction Cloud (ACC)
Key Work
Federated architectural, structural, MEP, interior design, and landscape models
Configured clash detection tests
Reviewed and categorized clash results
Documented coordination issues
Federated model view in ACC

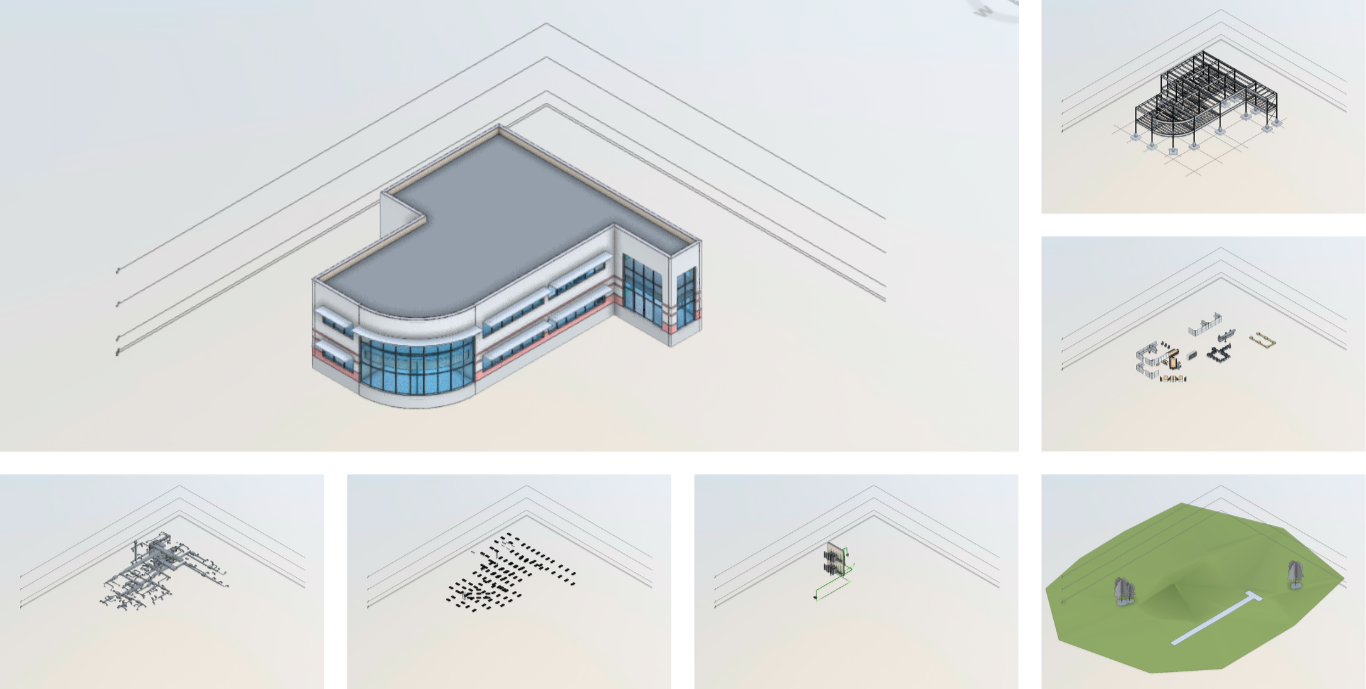

Individual discipline models within coordination workspace

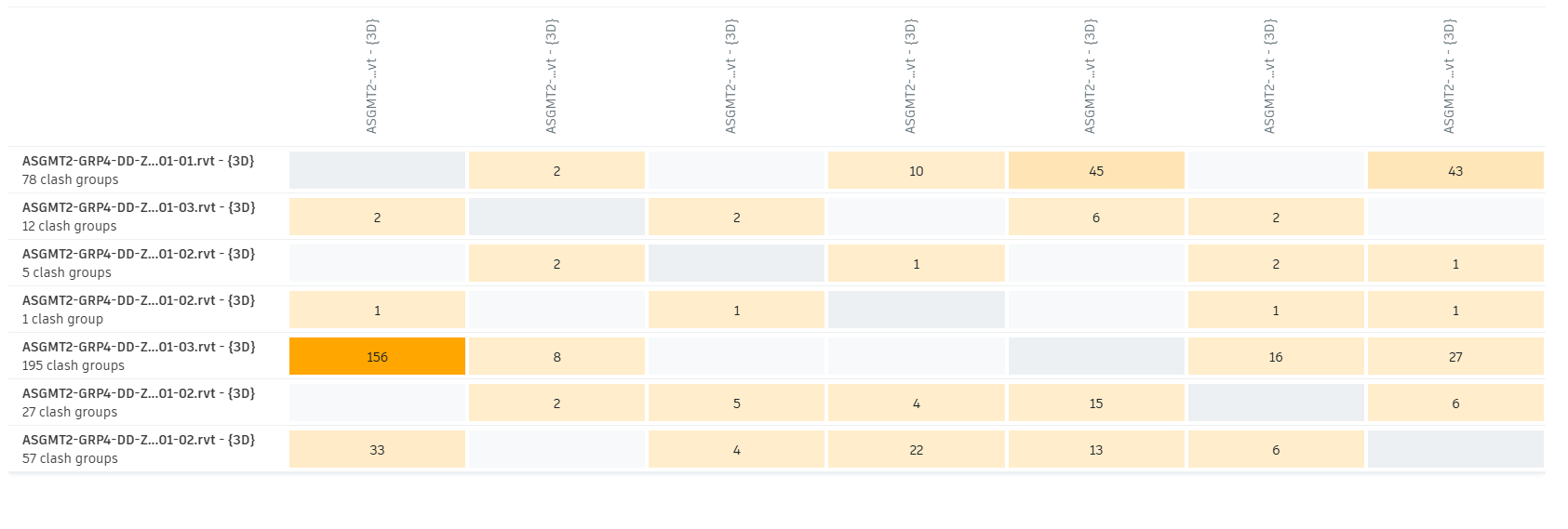

Clash detection matrix setup between model disciplines

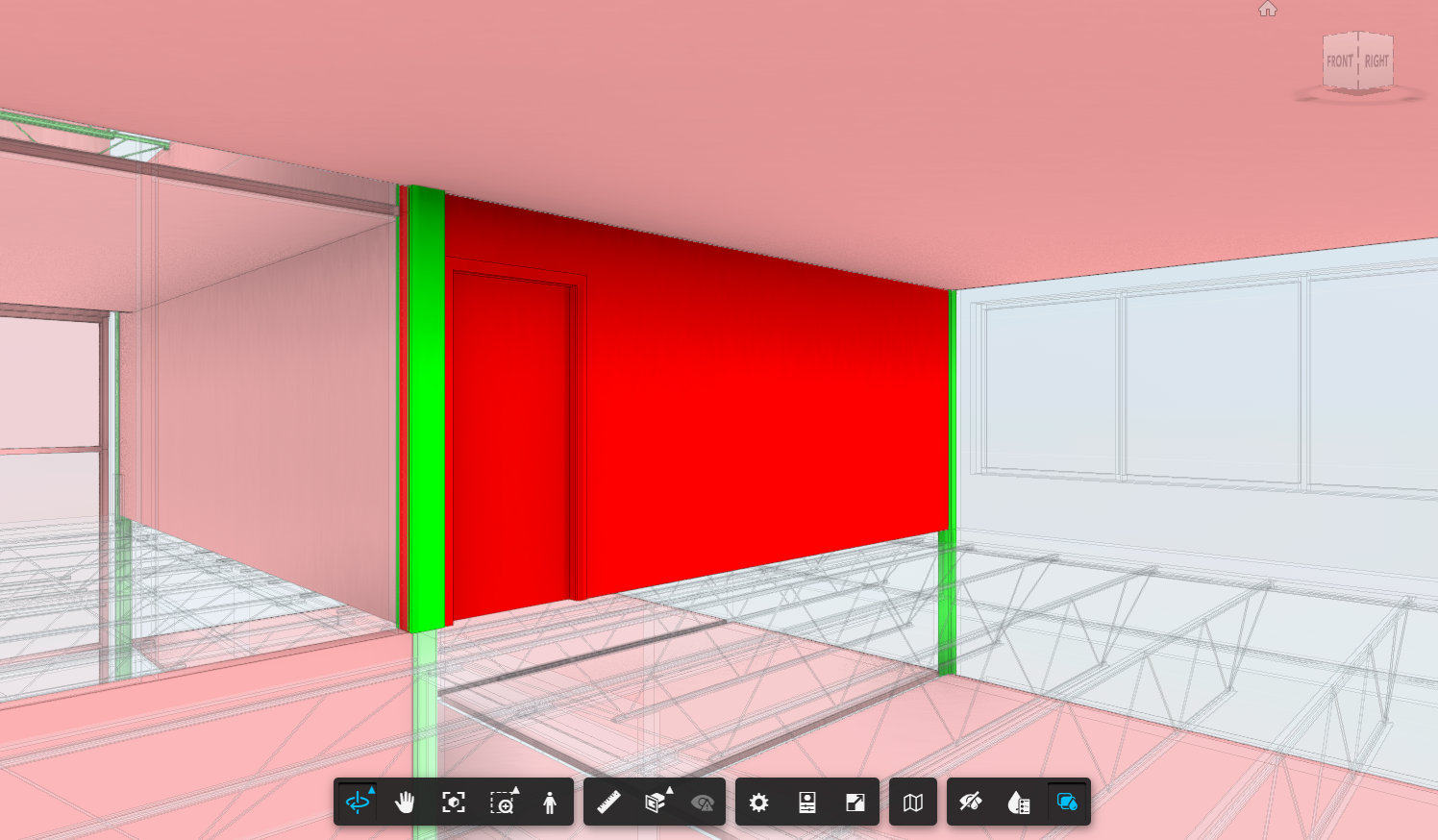

Clash example — Architectural vs Structural systems

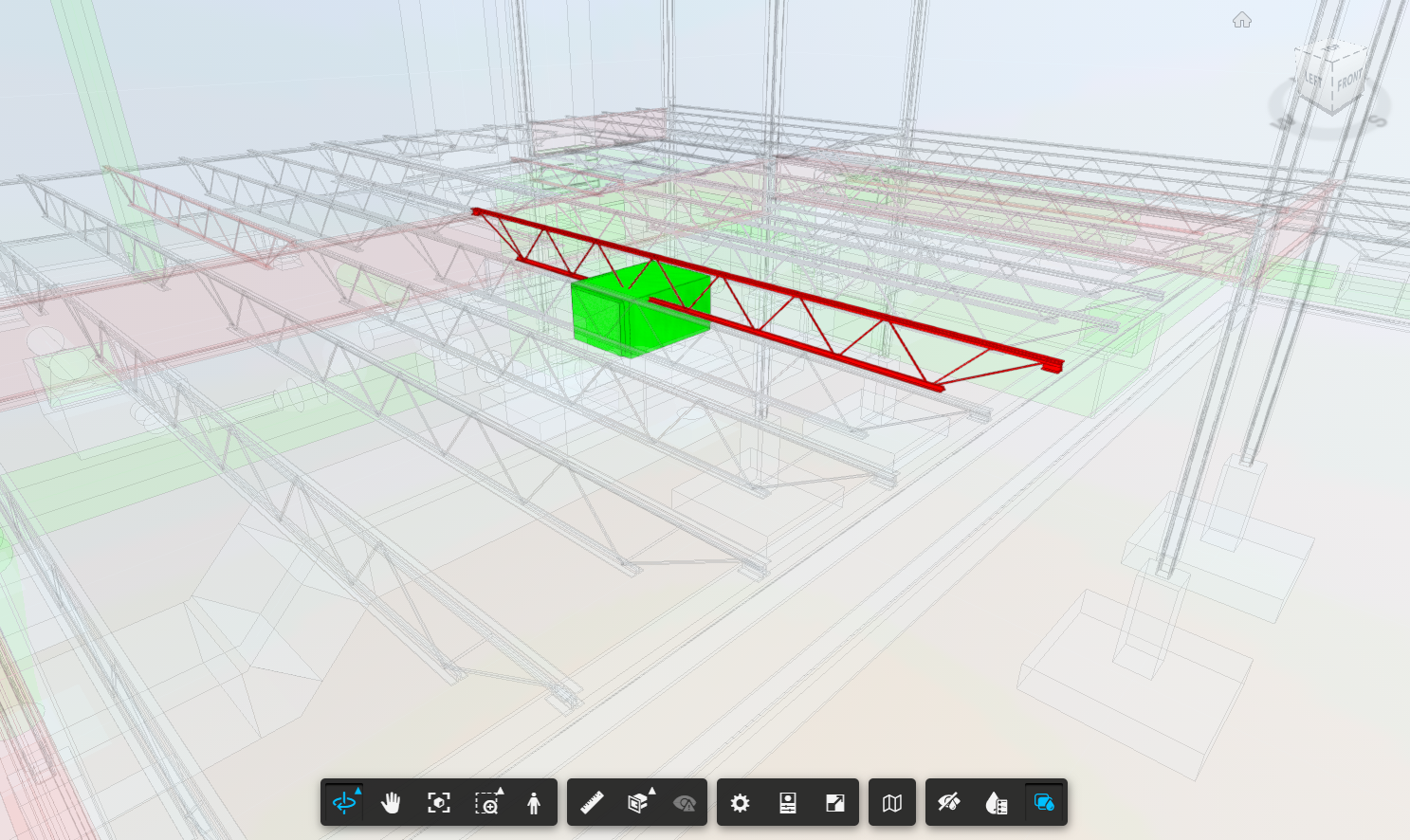

Clash example — Structural vs Mechanical systems
