Interior Modeling: Patient Room
Project Overview
Development of a typical Labor, Delivery, and Recovery (LDR) patient room layout within a healthcare setting, focusing on interior space planning and BIM-based documentation.
Role
Modeled interior layout, millwork elements, and furniture placement in Revit based on healthcare room requirements, producing coordinated drawings and documentation.
Tools
Revit · Enscape
Key Work
Developed interior space layout for a typical LDR patient room
Modeled millwork, furniture, and equipment placement
Produced construction documentation including floor plans, RCP, and interior elevations
Generated finish quantity takeoffs and furniture schedules from the Revit model
Patient room rendering 01

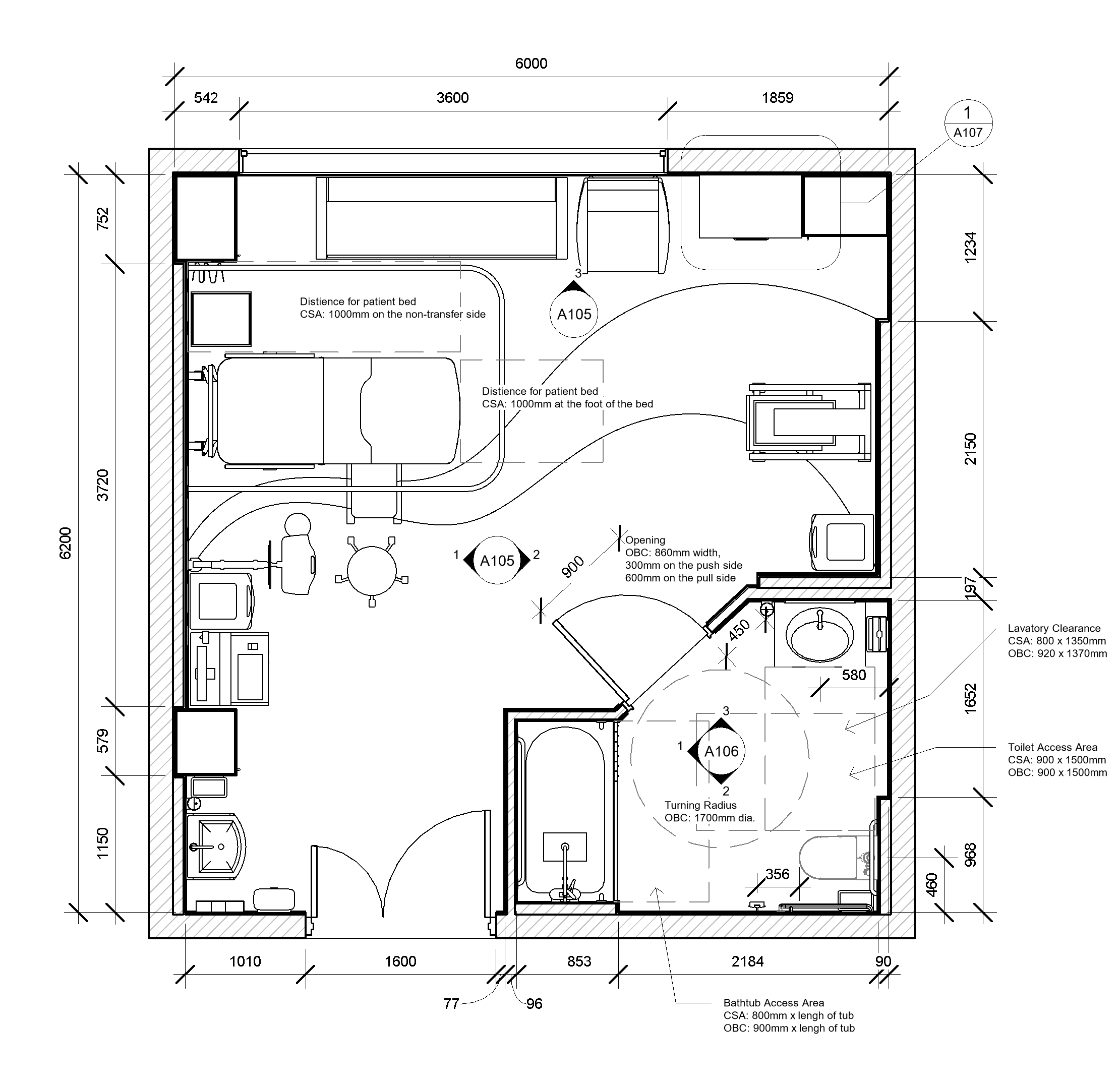

Patient room construction floor plan

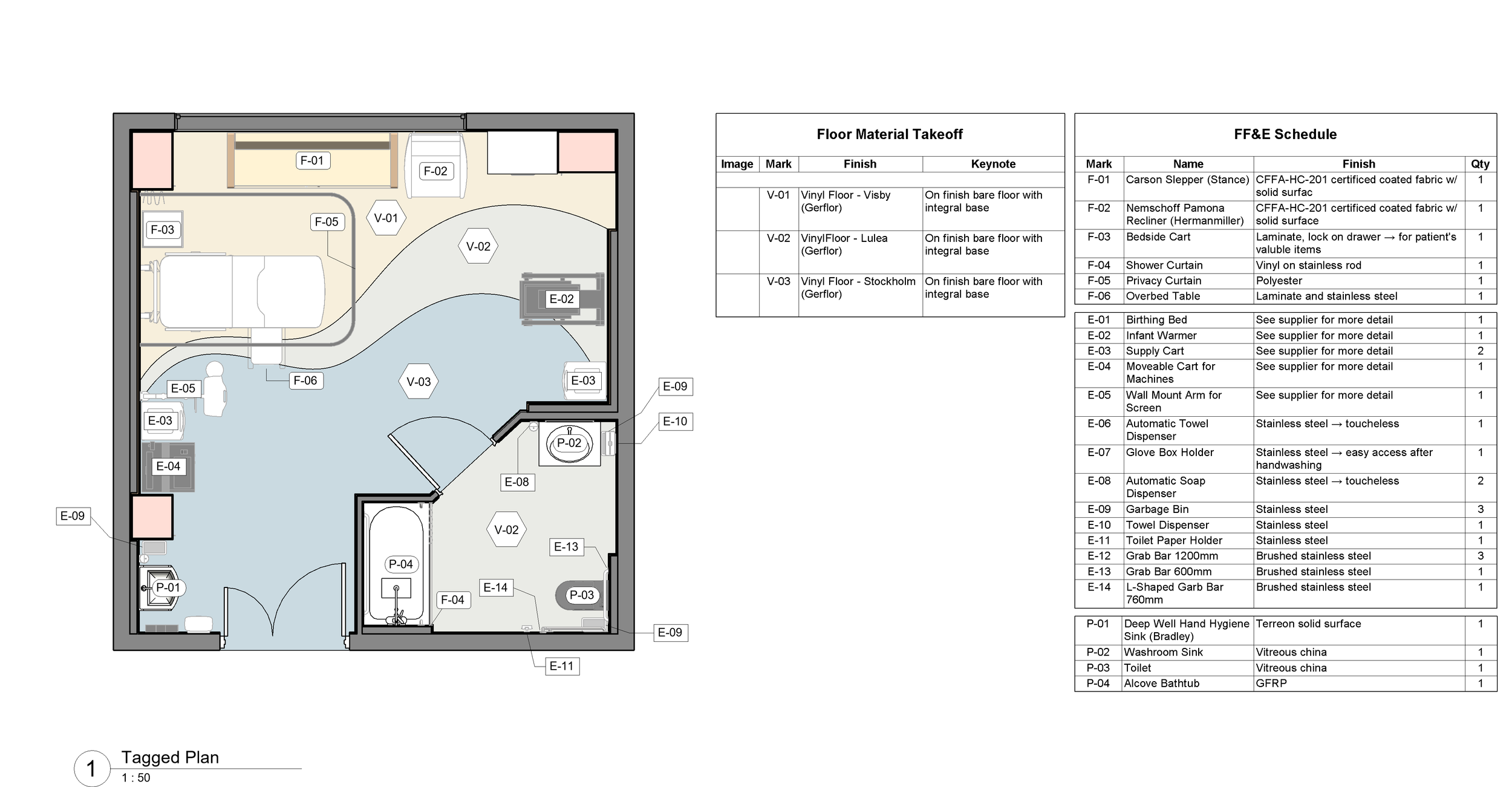

Tagged plan with floor finish takeoff and furniture schedule

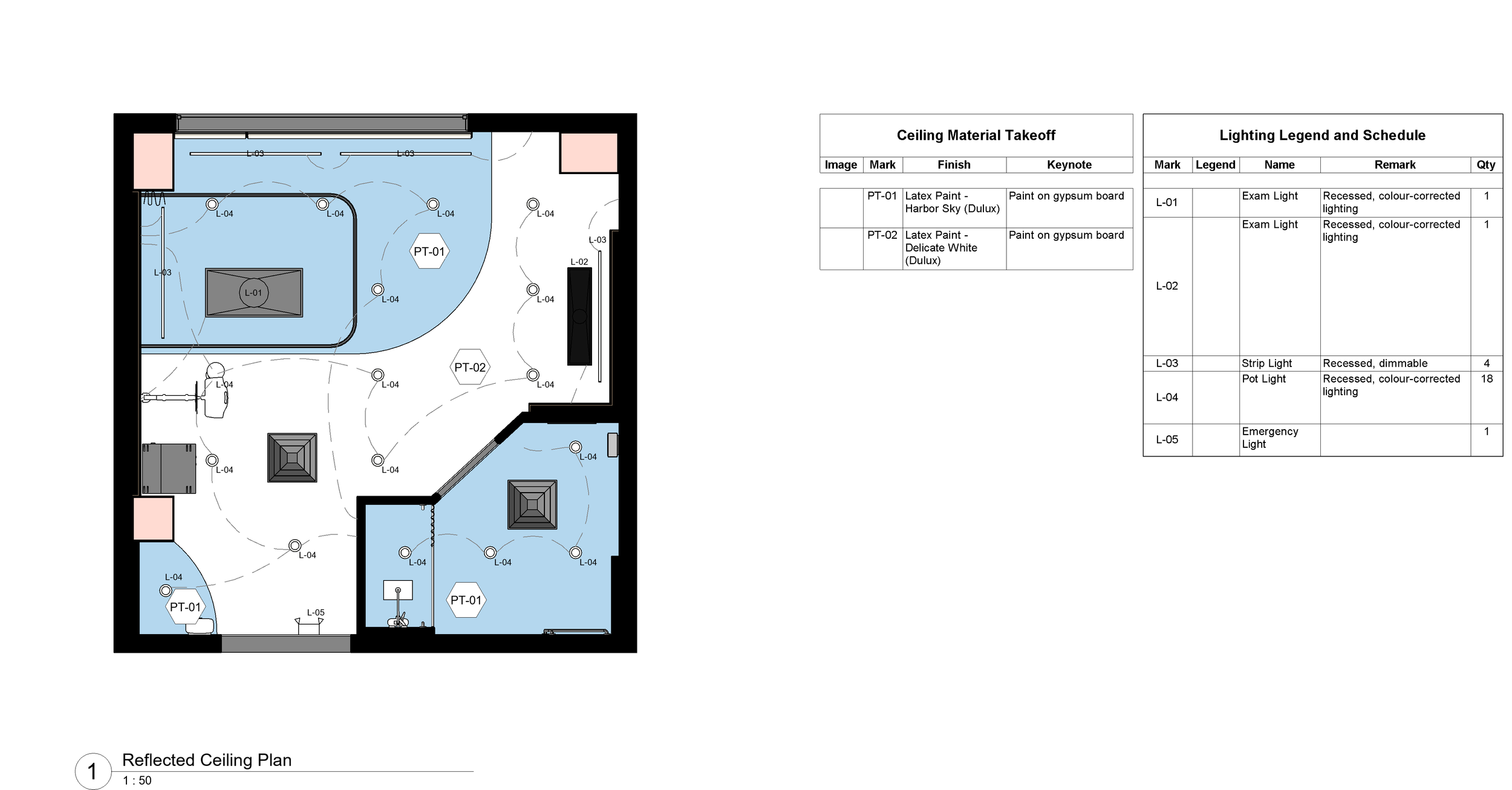

Reflected ceiling plan with lighting and ceiling finish schedule

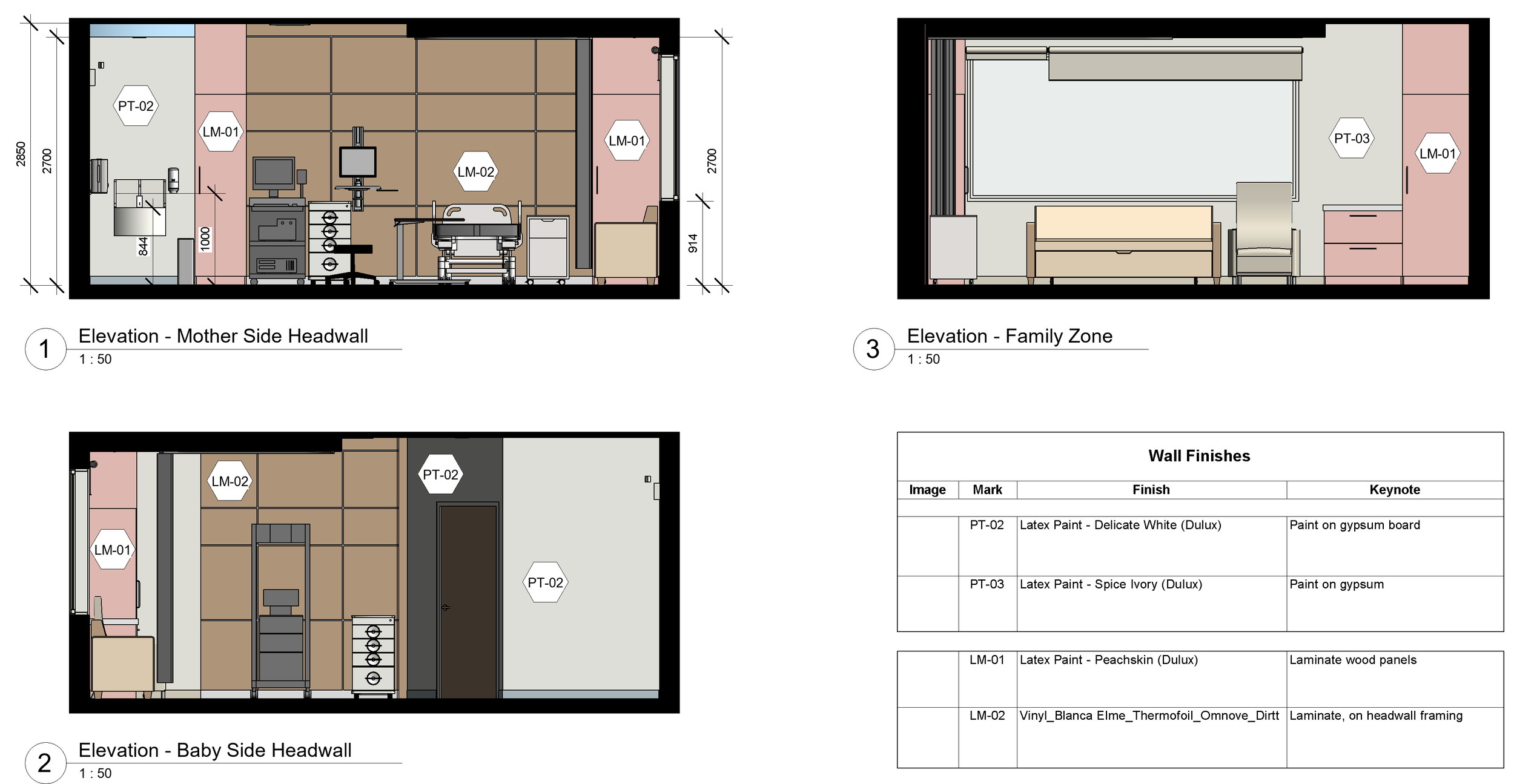

Patient room elevation with wall finish takeoff

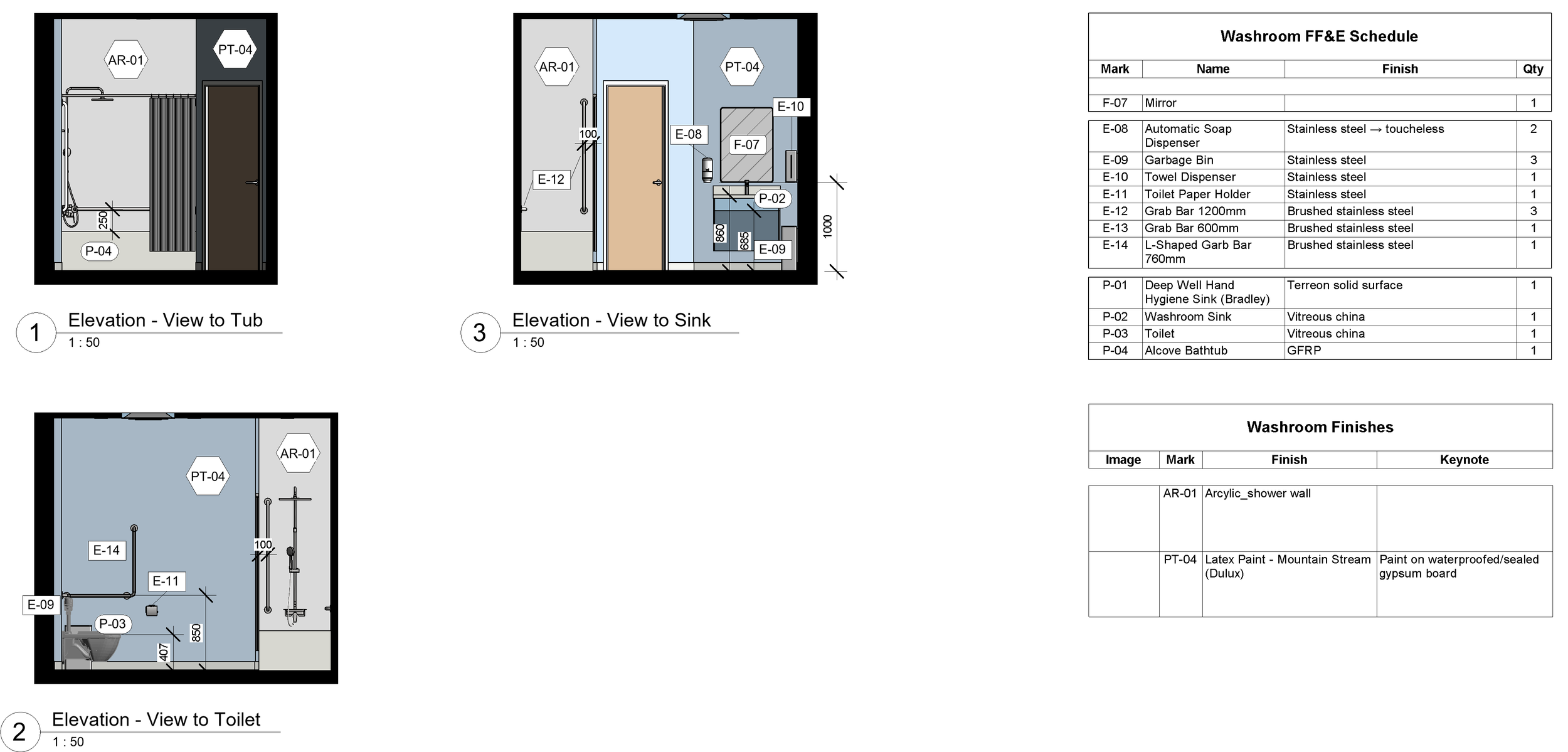

Washroom elevation with wall finishes and equipment schedule
Patient room rendering 02
Patient room rendering 03
